Custom Design Quotation

Please use this form for custom design requests and reviewing the LCD Design Criteria necessary to process your custom design requirements. Your information remains strictly confidential to our own records in accordance with the company's inner policy that prohibits releasing custom design specifications to other organizations unless a written authorization is issued by the initiator of a custom design case.

Contact Information
Title:
First Name: *
Last Name: *
Company: *
Address:
City:
State: (leave blank for outside USA)
Zip Code
Country:
Phone:

Extn:
* xxx-xxx-xxxx
Fax:
Email: *

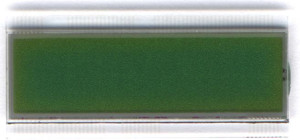

LCD Glass Panel / LCD Module Specifications:

Product Type: Complete LCD Module Glass Panel

Display type and Layout

1.Type

Graphic Segment Alphanumeric Mixed

2.Layout

X
Graphic (rows x cols): X
Segment (# of segments):

Dimensions (mm): min typ max
A- Overall Width of Glass:
B- Overall Height of Glass:
C- Rear Glass Height:
D- Viewing Area Width:
E- Viewing Area Height:
F-Active Area Width (Graphic):
G- Active Area Height (Graphic):
H-Thickness of Glass:
I- Overall Width with PCB:
J- Overall Height with PCB:
K- Bezel Width:
L- Bezel Height:
M- Total Thickness of LCD Module:
Operating Conditions: min typ max
1. Logic-Voltage(V):
2. LCD-Voltage (V @ 20C)
3. Operating Temperature Range (C):
4. Storage Temperature Range (C):
5. Viewing direction: 3:00 6:00 9:00 12:00 O'Clock
6. Duty rate: 1/
Polarizer: Reflective Transflective Transmissive
Display Mode: Positive Negative
LCD-Technology: TN HTN STN FSTN DSTN ECB Other:
LCD Glass Interface:
1. Technology: Pins Flexible Print Circuit Heat Seal Other
2. Contact sides: 1 2 3 L-Shape
3. Number of Electrode Contacts:
4. N- Pitch (mm): 1.80 2.00 2.54
5. O- Pin or Heat Seal Length (mm): 5.00 Other
STN Mode Background: Yellow-Green Gray Blue Black & White
IC Mounting Method: SMT COB COG TAB
Module Connector: Pin holes Pin Flex cabel Flat cabel
Other
Backlight:
1. Type: LED edge LED array EL CCFL
2. colour: White Red Blue Yellow Green

Control circuit:

Interface:

Parallel Serial

Temperature compensation

LCD-voltage generation (DC/DC Converter)

Additional components (IC's, etc.)

Project data:

Quantity Per Year:
/ year

Samples Required By:
week # / year

First Shipment Required By:
week # / year

Application:

Remarks:
